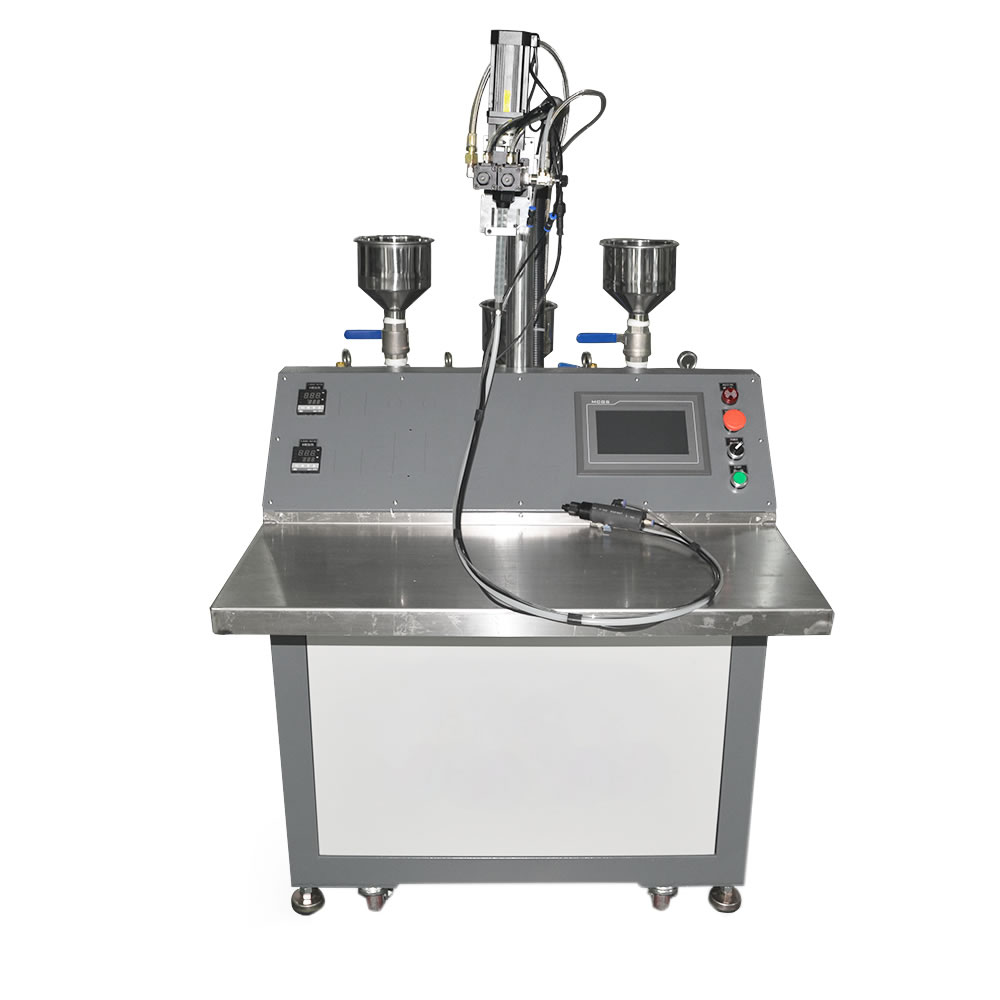

Semi-automatic AB glue inject machine

Technical Type

Technical Parameter

Glue mixing ratio

1:1~10:1
Moving Path Point
Potting Speed 10-150g/5s(Adjustable, outputting amount will be different with different glue)
Potting Precise Amount±1%, Ratio:±1%
Air Pressure 0.5-0.8MPa
Head Sealing pressure MAX≤2.6Mpa
A B Glue viscosity <10000CPS Operation Method Manual Flow Counting Visual Program Method Teaching Program Interface English Electronic Control System Smart control card+PLC+Touch Screen(Program setting, modify, save) Glue Stop System A, B Glue independent movement auto resorption system Mixing Stirring System High speed dynamic stirring mixing device Glue ratio control High precise metering pump A Pump High precise gear pump 6-12CC B Pump High precise pressure gear pump 0.6-2.4CC A Glue Bucket Stirring System Customize B Glue Bucket Stirring System Customize A Glue Heating System Support B Glue Heating system Customize Vacuum Function Customize A Glue Tank Volume 20L B Glue Tank Volume 20L Cleaning Tank Volume 10L Dimension 1050*850*1500mm Rated power consumption 220V 50Hz About 3500W
